Introducing

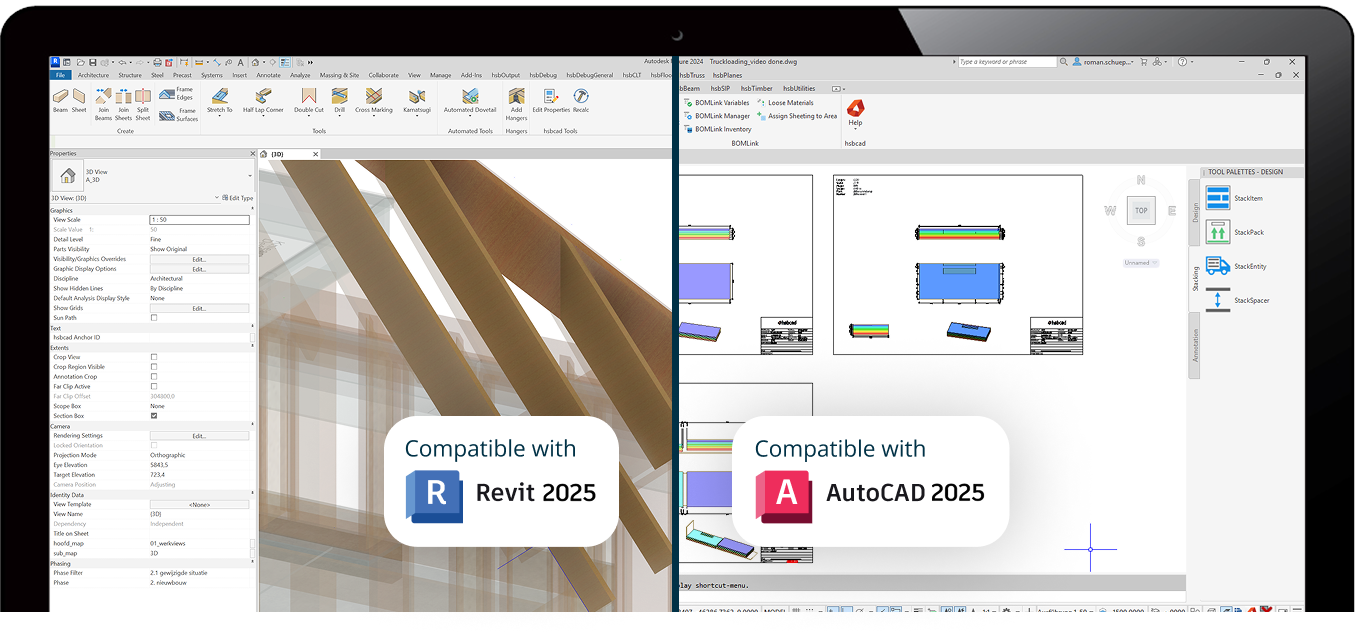

hsbDesign 28 for Revit® and AutoCAD®

Discover the suite of new features that will revolutionize the way you design your construction projects in Autodesk Revit® and AutoCAD®.

Get started today →

hsbcad is trusted by leading companies in the offsite timber industry

Empower your design process with hsbDesign

hsbDesign for Revit® and AutoCAD® is a powerful solution for flexible detailing, with diverse toolsets catered to your type of construction, also allowing you to create seamless exports to any CNC machine (Hundegger, Weinmann, Randek...).

Add detailing power to the world leading BIM & CAD software, Revit® and AutoCAD®: no extra onboarding needed.

Reduces mistakes and rework, improves communication, and helps your team to meet
schedules and budgets.
‍

Stop doing repetitive design
tasks: focus on what matters when detailing your design.
‍

An out of the box detailing solution with endless customizability: software that works for you.

New features in hsbDesign 28 for Revit®

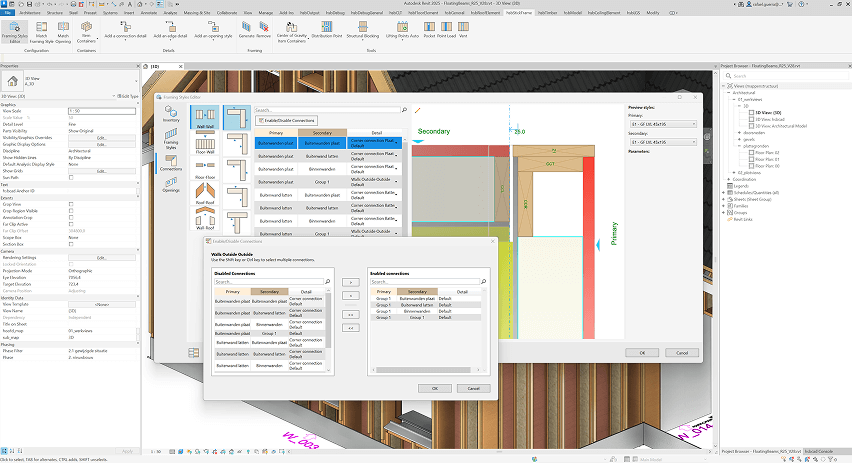

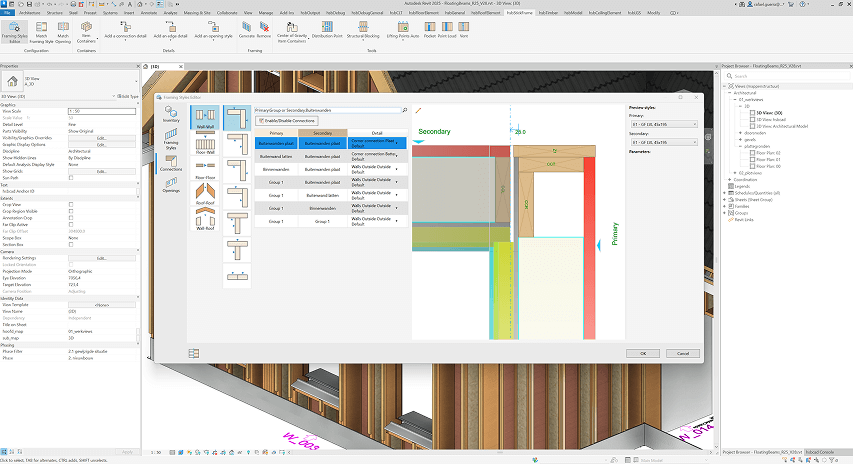

Disable Connections

Gain better control over connection details by disabling them across the entire model through the Framing Style Editor. Work with only the necessary connections, improving model clarity and performance.

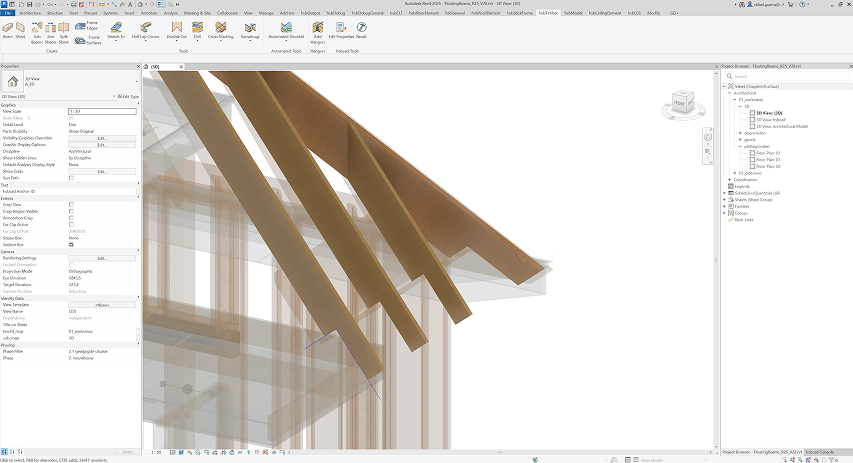

Double Cut Enhancements

The Double Cut Tool now dynamically supports multiple elements, allowing modifications and subtractions after insertion. Refine framing details with greater flexibility and precision.

Advanced Search Functionality

Find elements faster with Windows Advanced Query Syntax (AQS) support. Use structured searches to filter and locate items efficiently within your model.

See all latest features

Success Stories & Client Impact

With over 500+ clients worldwide hsbcad is present in the worldwide offsite construction ecosystem.

Discover all cases

New features in hsbDesign 28 for AutoCAD®

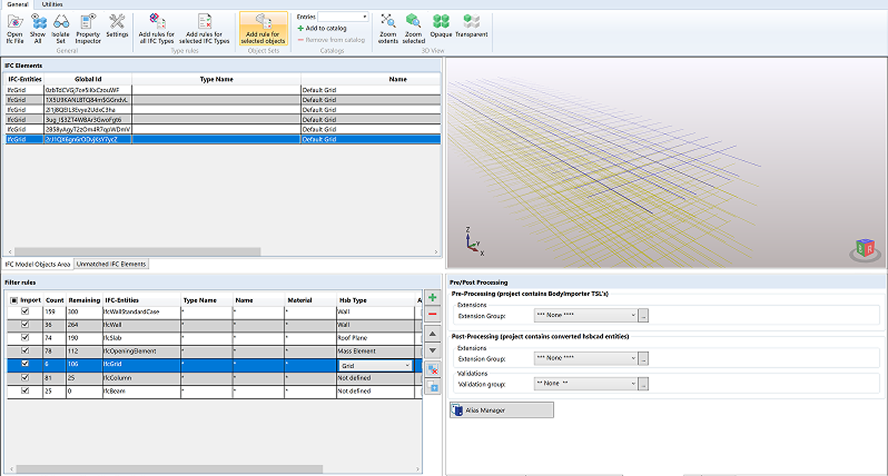

IFC Grid Import

Seamlessly import IfcGrid into hsbDesign and recognize it as an hsb type "Grid" in AutoCAD®. Improve alignment and coordination by integrating reference grids from external sources.

New TSL: StackHatch for Shop Drawings

Enhance shop drawing clarity with StackHatch, a new tool for adding hatching and solid fills to StackItems, StackPacks, and StackEntities. Customize appearance, transparency, and visibility for better documentation.

Sheet Filtering in Element Nailing

Gain more control over the Element Nailing Extension with the new "Sheet Tags to Ignore" feature. Prevent nailing in tagged sheets and streamline the nailing process with greater precision.

See all latest features

Discover the renewed hsbDesign 28 today

Make the most out of designing in Autodesk Revit® and AutoCAD®. Upgrade now or schedule quick guided demo with one of our hsbcad specialists.
