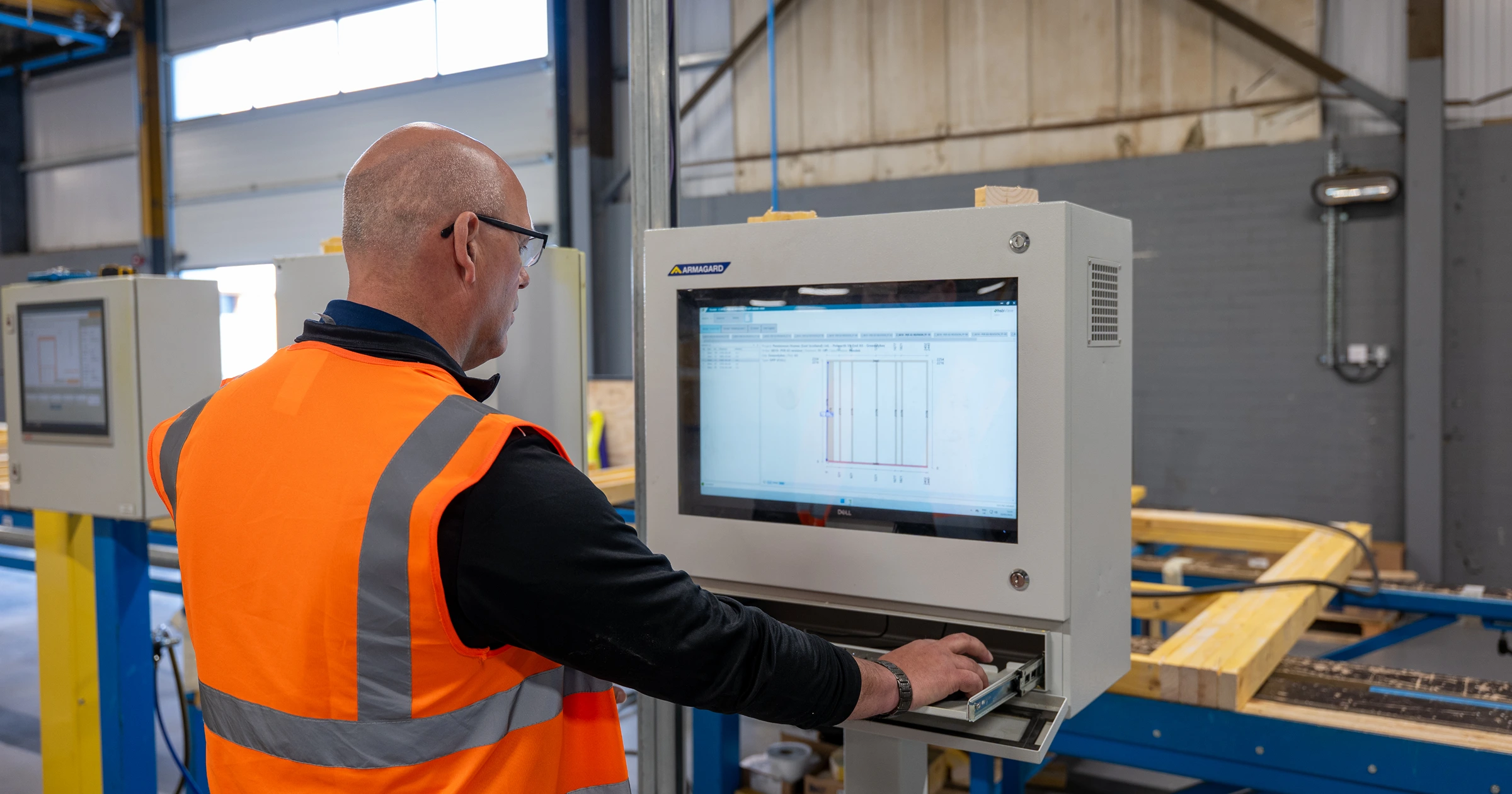

Does the CAD model drive the CNC machines?

It's one of the most common questions we hear from teams stepping into digital fabrication for the first time: Does the 3D model really tell the machine what to do?

The short answer is yes, but there's more to it than a single click.

From Model to Machine: What Actually Happens

A CAD model on its own is a geometric description of your building. It knows what a wall panel looks like, but it doesn't speak the language of a CNC machine or a beam saw. That's where CAM (Computer-Aided Manufacturing) software comes in.

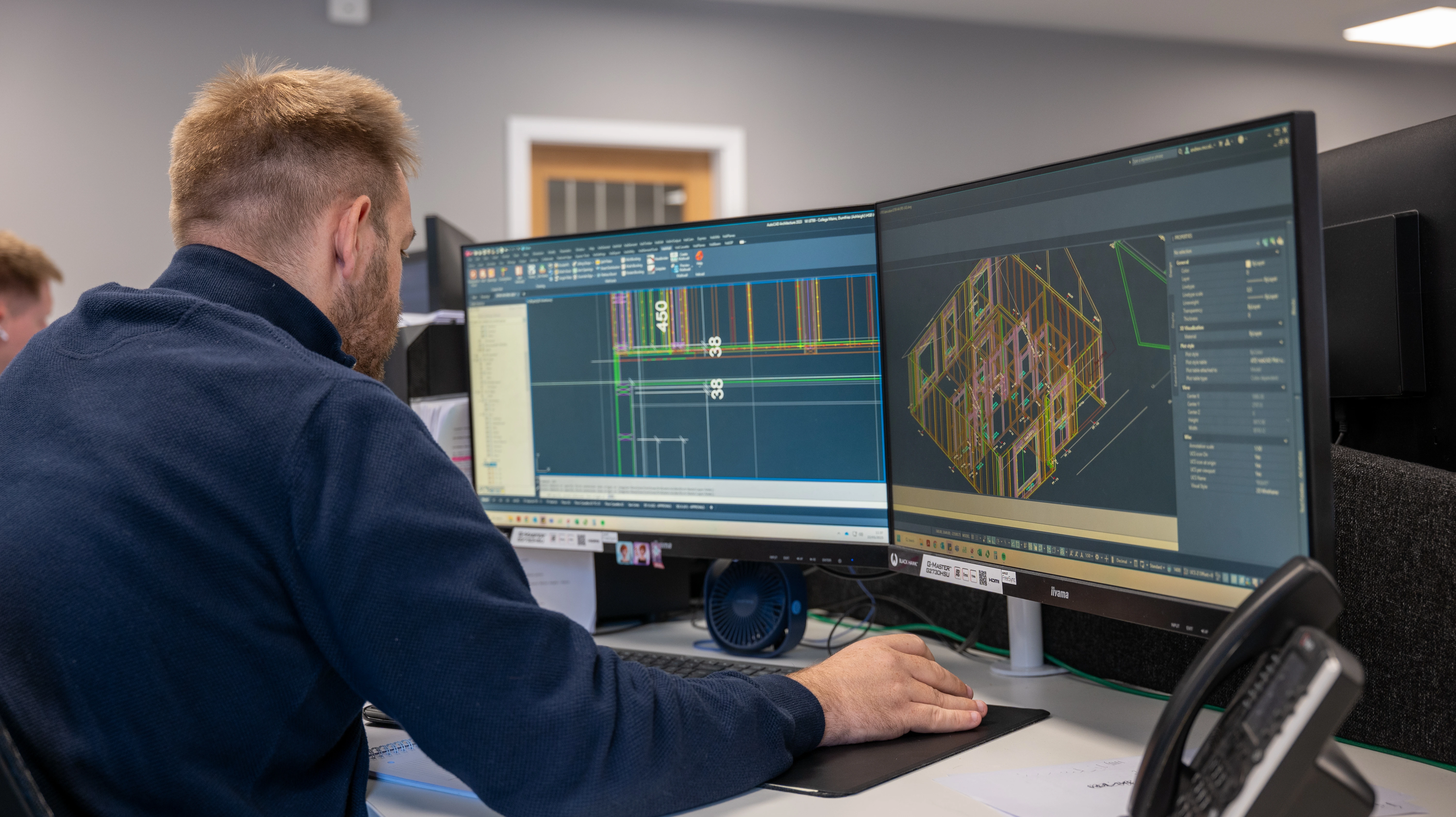

CAD Software - hsbDesign for AutoCAD®

The CAM layer reads your model and translates it into machine instructions: toolpaths, cut sequences, and drill positions that your equipment can actually execute. This translation step is where a lot of value is created and where many mistakes are prevented. A well-configured CAD/CAM workflow catches conflicts, optimizes cut order, and ensures the right part gets the right markup before it ever reaches the shop floor.

In a timber, mass timber, or CLT operation, whether you're running stickframe, SIP, log, or prefab, this connection between design and fabrication is the backbone of an efficient factory. Without it, you're printing shop drawings and hoping the factory operator gets the latest updated version.

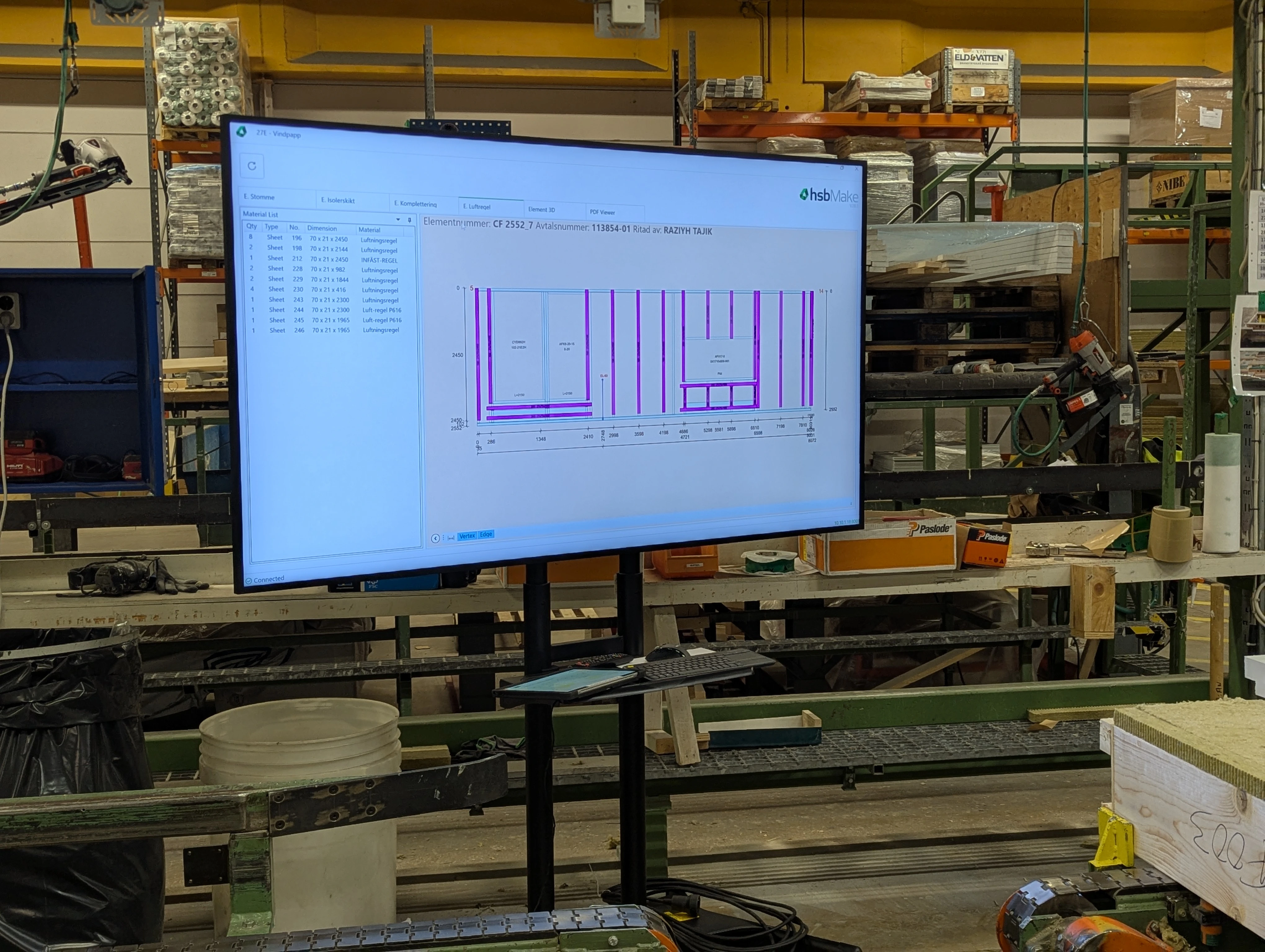

CAM/MES Software - hsbMake

Where CAM Software Makes the Difference

Not all software handles this chain equally. Some tools stop at the model. Others pass data downstream but require manual re-entry at each step. The best solutions maintain a live, unbroken connection from the design office to each factory manual or automated workstation, so that when a change is made in the model, it flows through to production automatically.

This is what eliminates the costly gap between "what was designed" and "what was built." It's also what makes scaling a factory operation realistic without adding headcounts at every stage.

The CAD model doesn't just inform production; in a properly connected workflow, it drives it.

Want to see how this works in a real offsite environment? Contact us, and we'll walk you through it.
